DAT-3/5
Category
Tank farm facilities, Drain equipment

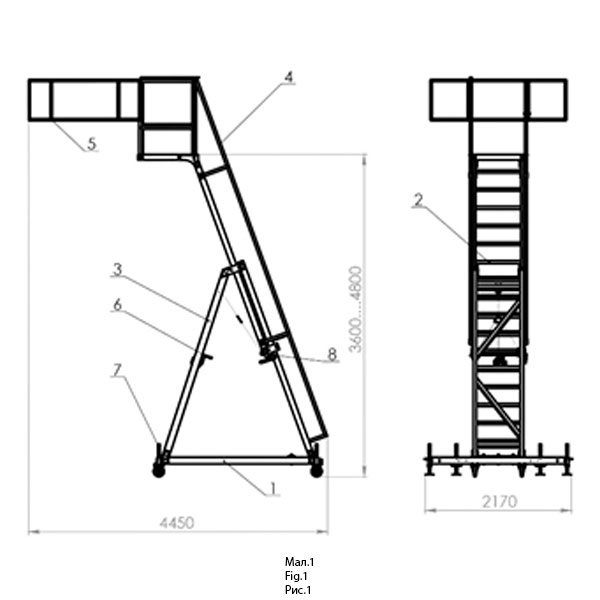

1-base of stairs; 2-stairs; 3-support sectuon;4-handrails; 5-fencing; 6-ball valve, 7-support rack; 8-retainer.
Technical characteristics and overall dimensions of the head are given in Table and in Fig. 1.
PURPOSE
Auto loading telescopic ladder is designed for maintenance of auto and railway tanks with oil product at ambient temperature from -20 to +40C.
TECHNICAL CHARACTERISTICS
| Main parameters and dimensions | Magnitude |
| Length, mm. | 4425 |
| Width, mm. | 2170 |
|
Height, мм:
min –
max – |
|
| 3600 | |
| 4800 | |
| Weight, kg | 210 |
