SHUTOFF FILTER ФО-45,80

Фильтр отсекатель ФО-45, ФО-80

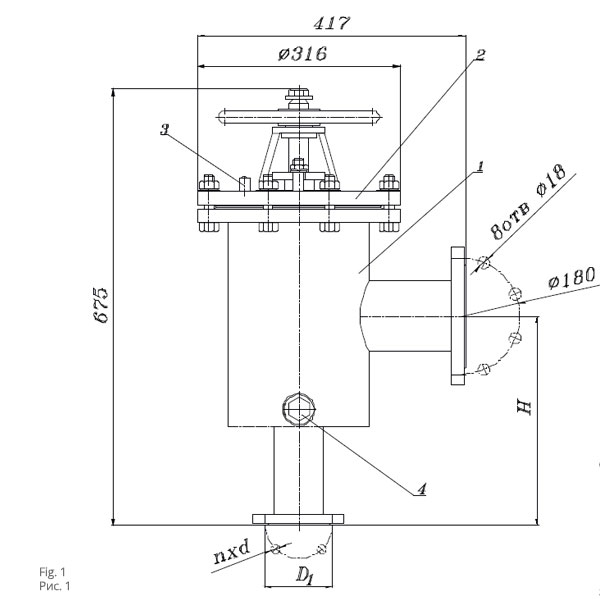

Чертеж фильтра отсекателя ФО

1-housing, 2-cover, 3-valve, 4-bleed nipple with plug.

PURPOSE

Shutoff filter is intended for:
– filtration of light oil products (gasoline, diesel fuel, kerosene, solvents) from mechanical impurities of 0,55…60MM2/sec;
– shutting off the delivery of liquid after pump switch-off for preventing outflow of liquid from the meter, and, accordingly, excluding downward bias of indications of the meter from actual value of the liquid delivered.

Shutoff filter is mounted upstream the liquid meter on the filling lines. To remove water and mud, there is a plug in the lower part of the housing.
General view of shutoff filter is given in Figure.

Note – Mating flanges upon agreement with the customer are made for specific assemblies being connected (pump, meter).

TECHNICAL CHARACTERISTICS
Виріб\Parameter

D1,

мм

d,

мм

n H, мм
ФО-45 130 14 4 380
ФО-80 150 18 4 330
