ON-FREEZING BREATHER MEMBRANE VALVE (КНДМ)

Клапан непримерзающий дыхательный мембранный КНДМ
Overall dimensions and connection dimensions
Parameter КНДМ 100 КНДМ 150 КНДМ200 КНДМ250 КНДМ350
Н, мм 570 570 890 890 1000
В, мм 460 460 690 690 810
D1, мм 170 225 280 335 445
d, мм 18 18 18 18 22
n, holes 4 4 4 4 12

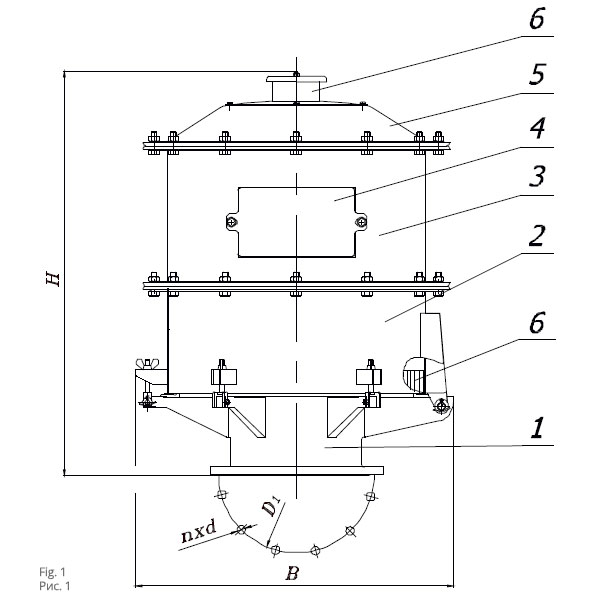

Чертеж клапана непримерзающего дыхательного мембранного КНДМ

1-base, 2,3-body, 4-hatch, 5-cover, 6-flame arrester.

PURPOSE

Non-freezing breather membrane valve (КНДМ) in accord with TU U 24607422.015-2000 is intended for sealing of gas space of the tank filled with oil and oil products for protecting it from environmental impacts and maintaining pressure in that space within specified limits, as well as elimination of occurrence of sparks and flame inside the tank.

КНДМ operating temperature: from minus 40 to plus 50°C

TECHNICAL CHARACTERISTICS
Parameter КНДМ-100 КНДМ-150 КНДМ-200 КНДМ-250 КНДМ-350
Nominal diameter of the fitting, mm 100 150 200 250 350
Actuation pressure, mm of water column 140-160 140-160 140-160 140-160 140-160
Actuation vacuum, mm of water column 12-20 12-20 12-20 12-20 12-20
Carrying capacity, m3/hour 200 500 900 1500 2500
Weight, not more than, kg ЗО 37 74 77 120
