КП-40, КП-50, КП-40/2, КП-50/2

Category
Equipment AZS

INTAKE VALVE КП-40,КП-50,КП-40/2,КП-50/2

Клапан приемный КП-40 (50)

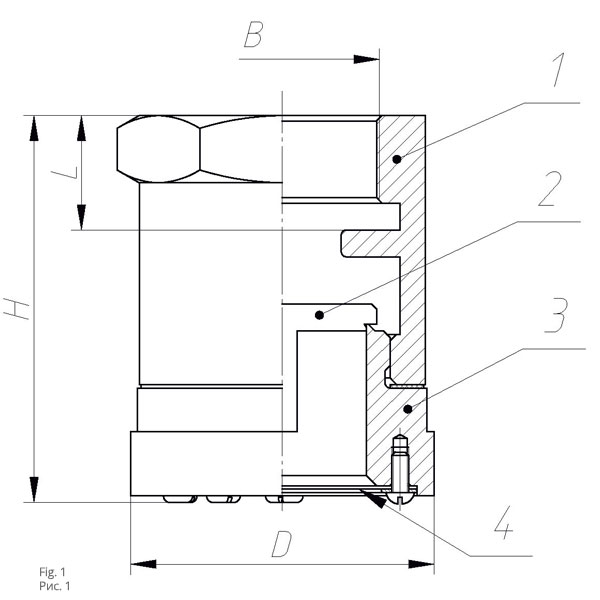

Intake valve КП-40 (50) 1-body; 2-valve; 3-seat; 4-filter.

Клапан приемный КП-40/2 (50/2)

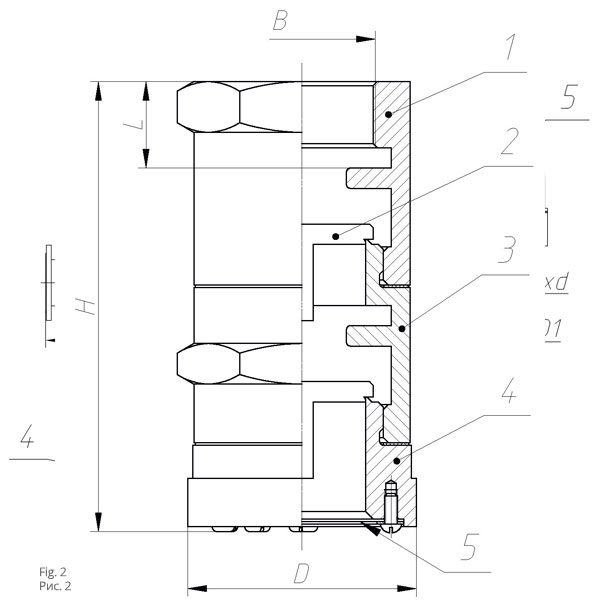

Intake valve КП-40/2 (50/2) 1-upper part (body), 2-valves, 3-medium part (body), 4-lower part (body); 5-filter.

Клапан приемный КП-80 (100)

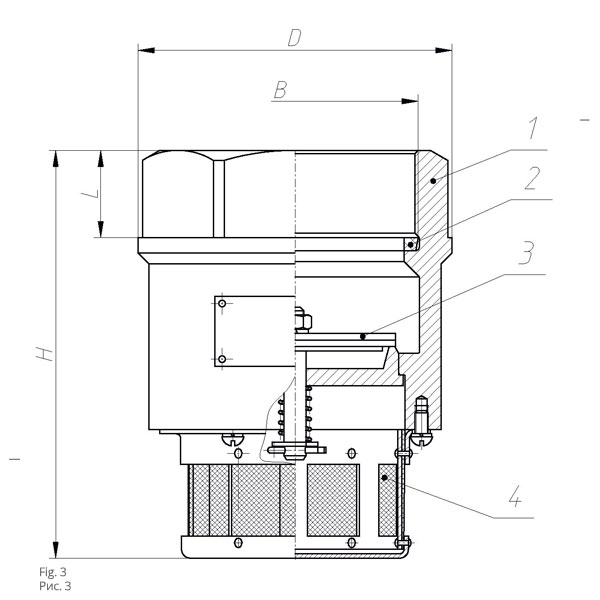

Intake valve КП-80 (100) 1-body, 2-gasket, 3-valve, 4-filter.

Клапан приемный КП-80 (100)

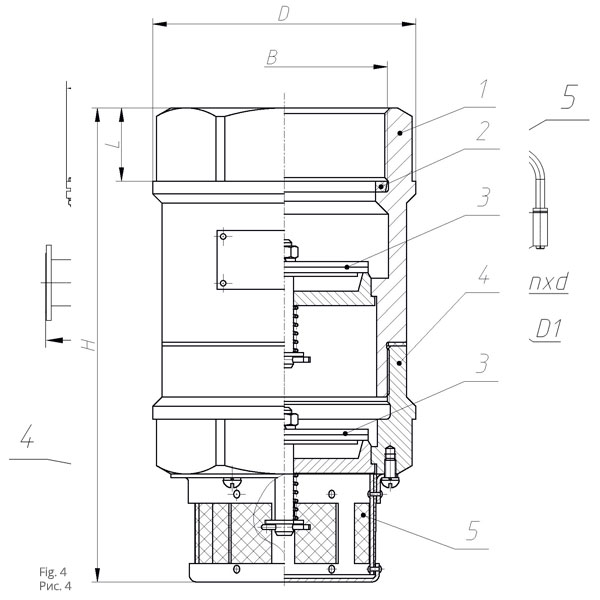

Intake valve КП-80 (100) 1,4-body, 2-gasket, 3-valve, 5-filter.

TECHNICAL CHARACTERISTICS
Designation D, мм Н, мм В L Weight, kg
КП-40 90 150 G11/2 34 0,9
КП-50 90 115 G2 34 1,2
TECHNICAL CHARACTERISTICS
Designation D, мм Н, мм В L Weight, kg
КП-80 120 180 G3 40 0,9
КП-100 144 190 G4 40 1,8
Клапан приемный
TECHNICAL CHARACTERISTICS
Designation D, мм Н, мм В L Weight, kg
КП-40/2 92 204 G11/2 34 1,4
КП-50/2 92 210 G2 34 2,2
TECHNICAL CHARACTERISTICS
Designation D, mm Н, мм В L Weight, kg
КП-80/2 120 250 G 3 40 2,7
КП-100/2 144 265 G 4 40 4

PURPOSE

Intake valve in accord with technical specifications TU U 24607422.009-2000 is intended for maintaining the column of liquid in the suction pipeline with a view to ensuring the pump operation without preliminary filling with the liquid being transmitted.

The intake valve is mounted on the end of suction pipeline in the container from which the liquid is transmitted.

Intake valve operating temperature from minus 40 to plus 50°C.

Overall dimensions and connection dimensions of intake valves are given in Figures and Tables.
