МШНф- 3,5; 4,5
Category
Other equipment, The tool measuring

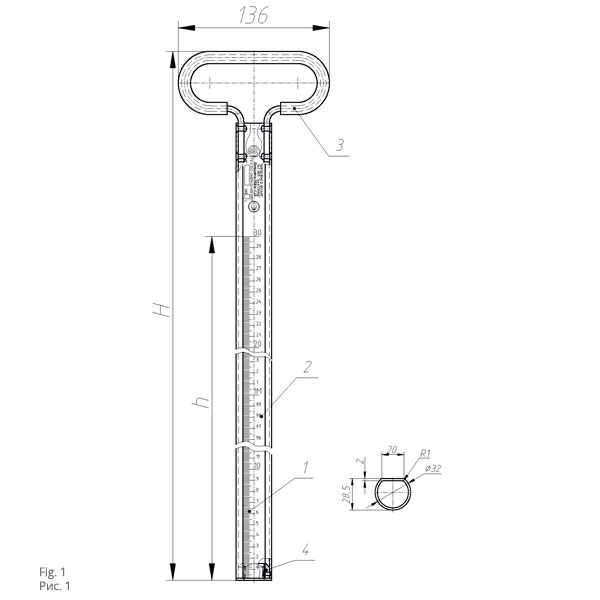

1-scale; 2-link; 3-handle; 4-tip.
PURPOSE
Gauging rod in accord with TU U 33.2-24607422-020:2007 is intended for measuring the level of oil products and tank water in transport tanks and stationary tanks (containers) with pressure of up to 0,0005 MPa.

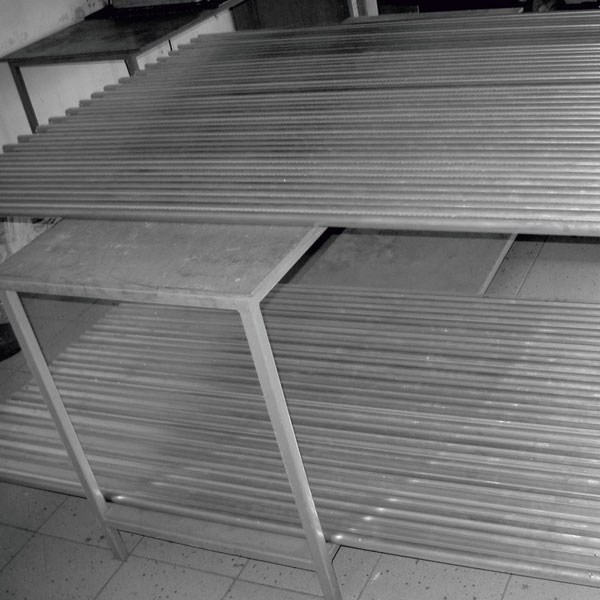

Gauging rods are made of aluminium alloy, of two dimension types – 3,5 m and 4,5 m.
The tip of an intrinsically safe.
| TECHNICAL CHARACTERISTICS | ||
| Parameters\Dimension type
|
МШНф-3,5А | МШНф-4,5А |
| Gauging rod length in assembled condition H, mm | 3500 | 4500 |
| Scale range, mm | 3300 | 4300 |
| Scale division value h, mm | 1 | 1 |
| Pipe diameter D, mm | З0…36 | З0…36 |
| Weight, kg, max., of the rod made of:
– aluminium alloy – corrosion-resistant steel |
3,0 5,5 |
4,3 7,2 |
