1-body, 2-shaft, 3-flywheel, 4-guide rail.

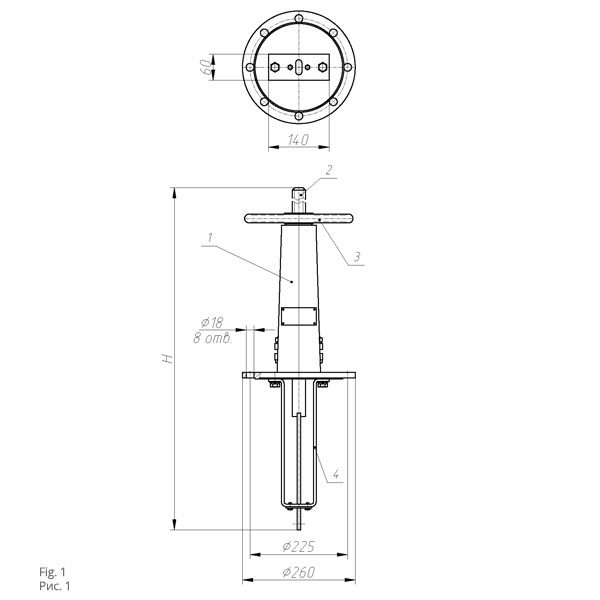

Geometrical and control dimensions of МУВ are given in Figure and in Table.
Upper internal check valve control device in accord with TU U 24607422.010-2000 is intended for opening (closing) of internal check valve cover and fixation thereof in any position in horizontal cylindrical tank with oil products.
Control device is intended for internal check valves with nominal internal diameter of Ду 80,100,150,250. МУВ operating temperature: from minus 40 to plus 50°C.
Internal check valve control device is mounted on the skylight of the tank above the valve.
|Designation||Н, мм||Weight, kg|
