FLOW STAND (NTM 90-020)

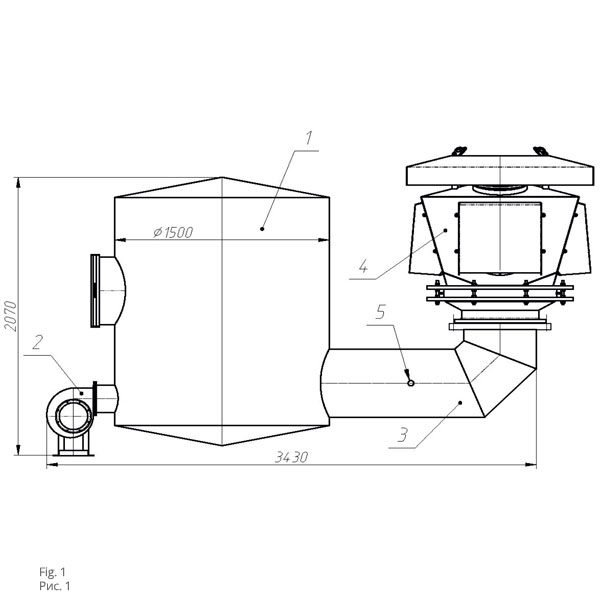

Dimensions and perspective view of the stand shown in Fig. 1

1-container; 2-fan; 3-conduit; 4-valve test; 5-micromanometer.

PURPOSE

Stand expense (NTM 90-020) for the purge valve breathing to determine their capacity at extreme pressure and vacuum inlet valve.
