PIPE HEADER ППР-80,100,150,250,400

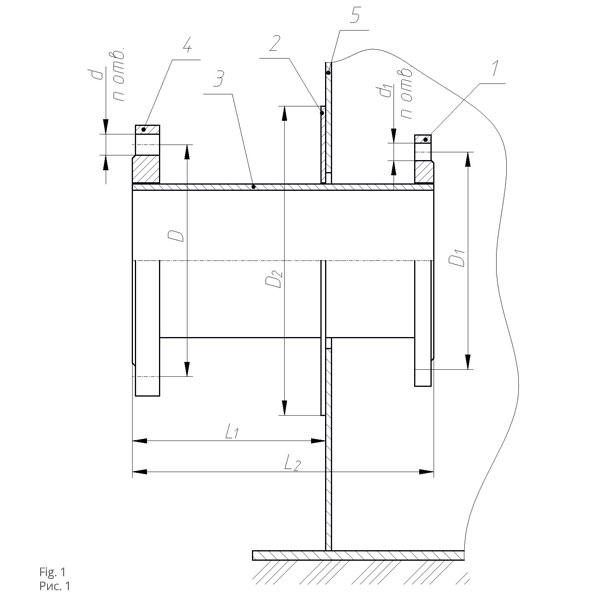

Чертеж патрубки приемо-раздаточные ППР-80, 100, 150, 250, 400

1-flanges, 2-reinforcing ring, З-tube, 4-flanges, 5-tank.

TECHNICAL CHARACTERISTICS
Product designation	Nominal internal diameter, DN, mm	Connection dimensions of flanges for nominal pressure, MPa (kg/cm2)							Overall dimensions, mm, max.		Weight, kg. max.
		For shutoff valves 1,0(10)			L1, мм	For internal check valves 0,6(6)			Length, L2	Width, D2
		D, мм	d, мм	n, мм	L1, мм	D1, мм	d1, мм	n1, мм	Length, L2	Width, D2
ППР-80	80	160	18	4	200	150	18	4	300	180	10
ППР-100	100	180	18	8	200	170	18	4	300	220	14
ППР-150	150	240	22	8	200	225	18	8	300	320	23
ППР-250	250	350	22	12	250	335	22	12	380	550	49
ППР-400	400	525	30	16	400	525	30	16	565	860	180

PURPOSE

Pipe headers are intended for connection of industrial pipelines with tanks used for storage and delivery of oil and oil products.

Pipe headers are completing units of vertical and horizontal cylindrical tanks and they are mounted in the lower tank ring on the walls, in accord with tank design.
