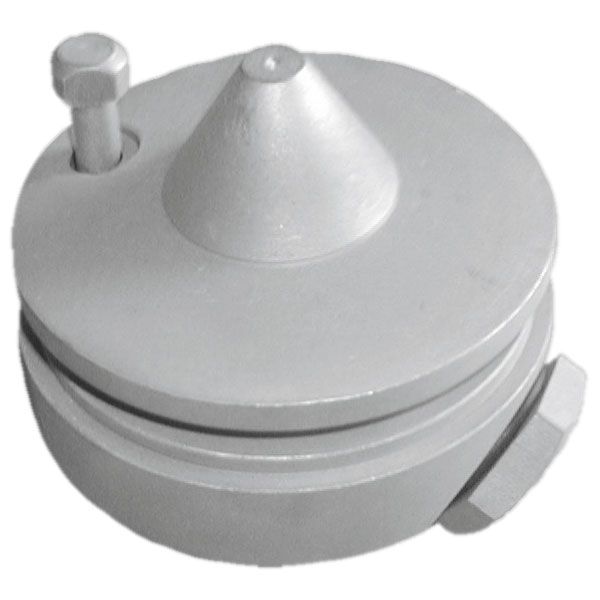

WATER/MUD DRAIN PLUG ПВГС-85

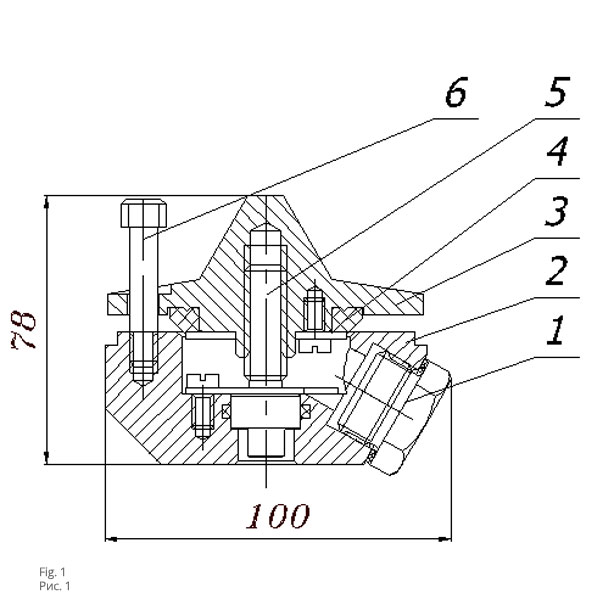

1-drain plug, 2-body, 3-valve, 4-ring, 5-axis, 6-drive screw.

PURPOSE

Stopper vodogryazespusknaya (weighing 2.1 kg) is used to remove water and solids which have accumulated on the tank bottom.

The plug is welded in the bottom of the vertical vessel and into the lower portion of the cylinder horizontal ground tank. Geometric and connecting dimensions are shown in Figure 1.
