Р10УЗГНф, Р20УЗГНф

Category
Other equipment, The tool measuring

METALLIC GAUGE ТАРЕ

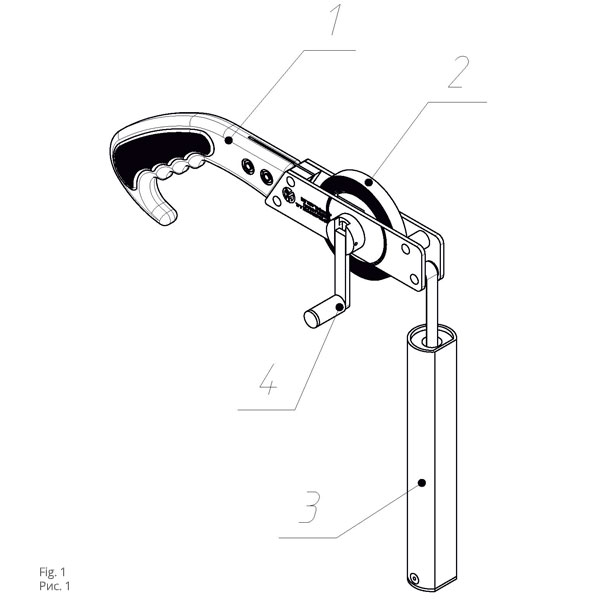

1-handle, 2-tape, 3-weight, 4-tommy bar.

PURPOSE

Metallic gauge tape (“gauge tape”) is intended for measuring the level of oil and oil products in tanks.

Gauge tapes are produced in ten- and twenty- meter versions.

The gauge tape consists of metallic tape and weight (lead) attached to it. Onto the tape and weight, the scale of 1 mm interval is applied. For reeling of the tape onto drum, there is tommy bar being at the same time the tape retainer.

Material of the parts of weight contacting the tank bottom is spark-proof.

TECHNICAL CHARACTERISTICS
Parameters and elements of scale Rated values for dimension types
Р10УЗГНф Р20УЗГНф
Length of gauge tape scale, mm 10000 20000
Mass of gauge tape with the weight, kg, max. 1,4 1,5
Scale division , mm 1
Weight mass , kg 0,8 ± 0,04
Allowable error of total length of gauge tape scale and its certain intervals at temperature of (20 ± 5) C, mm :

– for millimeter intervals

– for centimeter intervals

– for decimeter intervals

– section of scale of 1 m and more



±0,20

±0,30

±0,40

± [0,40±0,20(L -1)]

Note – L – number of complete/incomplete meters in die section
