САН-80,(100)М
Category
Equipment filter, Tank farm facilities

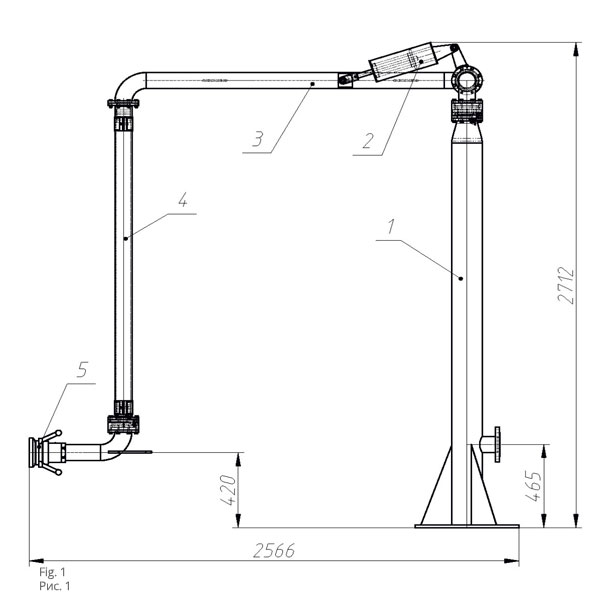

1-rack; 2-shock; 3-horizontal outlet; 4-sleeve; 5-Connect suhorazemnoe.
| TECHNICAL CHARACTERISTICS | |
| Basic parameters and dimensions | Standard value |
| Nominal internal diameter, mm | 80(100) |
| Rated capacity, m3/hour | 45(100) |
| Nominal pressure, MPa (kgf/cm2), max. | 0,6 (6) |
| Ambient temperature, C° | From -40 to +50 |
| The angle of yaw native hinge degrees with at least | 360 |
PURPOSE
Riser lower avtonaliva SUN-80 (100) is designed for bottom loading of light oil with a viscosity of 0.55 … 60 mm2/s at oil tanker stations and tank farms measuring the amount of oil in the allotted volume units at ambient temperatures from minus 40° C to + 60° C.
The riser is the welding-team structure, which is installed at the site avtonaliva light oil on the foundation is attached to the anchor bolts. The hinges mounted in the riser pipe, allow pouring zone radii from 0.5 m to 2.3 m with an angle of 360 degrees.
lt is allowed to use for loading other noncorrosive liquids with respect to structural steel, and oil and petrol resistant rubber.
Riser SUN-80 (100) corresponds to TU U 29.1-24607422-003: 2005
