HYDRAULIC SAFETY VALVE(КПГ)

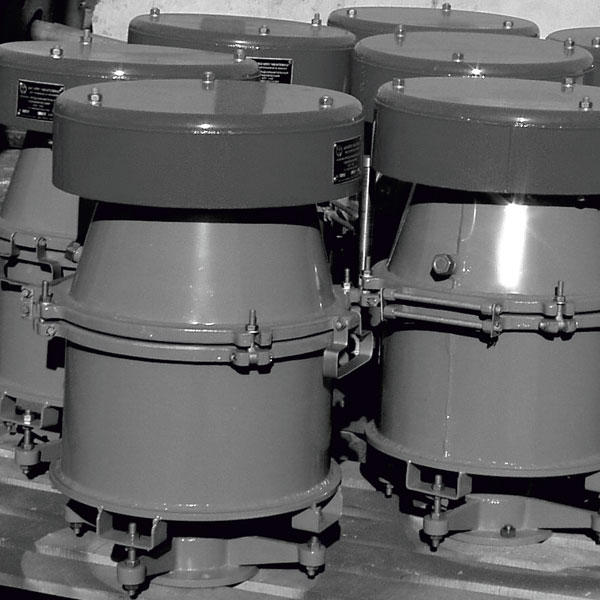

Клапан предохранительный гидравлический КПГ

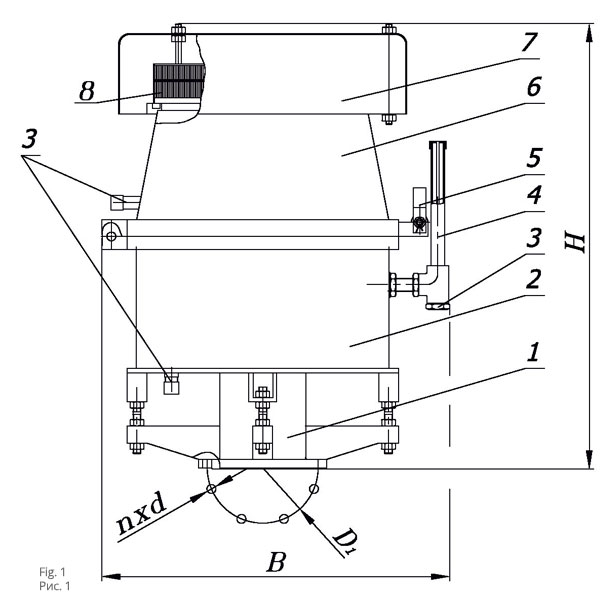

Чертеж клапана предохранительного гидравлического КПГ

1-base, 2,6-body, 3-drain plug, 4-probe, 5-handle, 7-protective cover, 8- flame arrester.

PURPOSE

Hydraulic safety valve (КПГ) in accord with technical specifications TU U 24607422.014-2001 is intended for protection of oil / oil products’ storage tanks from crash in case of failure of breather membrane valve, and it is set for excess pressure of 180-200 mm H20 and vacuum of 34-40 mm H20 inside the tank compared with the ambient pressure.

TECHNICAL CHARACTERISTICS
Basic parameters Designationof valves
КПГ-100 КПГ-150 КПГ-200 КП Г-250 КПГ-350
Nominal diameter of the fitting, mm 100 150 200 250 350
Actuation pressure, Pa (mm of water column) 1765-1962 (180-200)
Actuation vacuum, Ра (mm of water column) 333,5-392

(34-40)
Carrying capacity (for air), cub. m/hour 200 500 900 1500 2700
Volume of liquid of hydraulic lock, l 2 6 12 21 50
Overall dimensions BхН, mm, max. 570х750 710х920 910х1110 1110х1500 1550×2000
D, мм 170 225 280 335 445
nxd, q-ty х mm 4×18 4×18 4×18 8×18 12×22
Weight kg, max 59 92 124 167 312

Примечание: жидкость, заливаемая в клапан – трансформаторное масло ГОСТ 982
