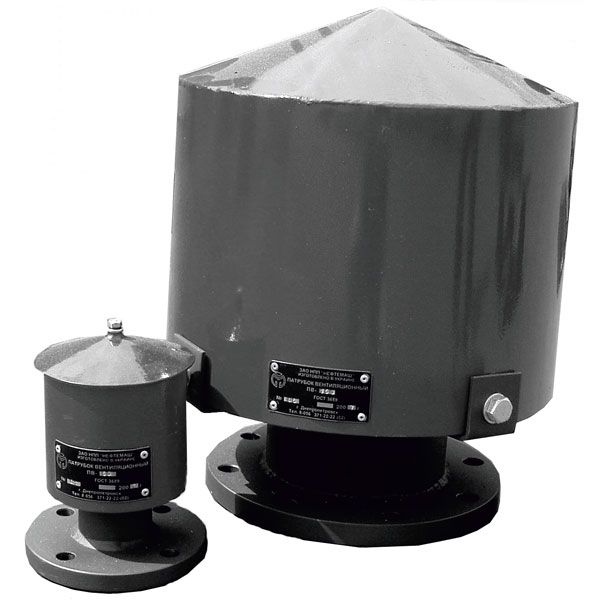

VENT BRANCH PIPE ПВ-50,150,200,250,300,350,500

Патрубок вентиляционный ПВ-50, 150, 200, 250, 350, 500

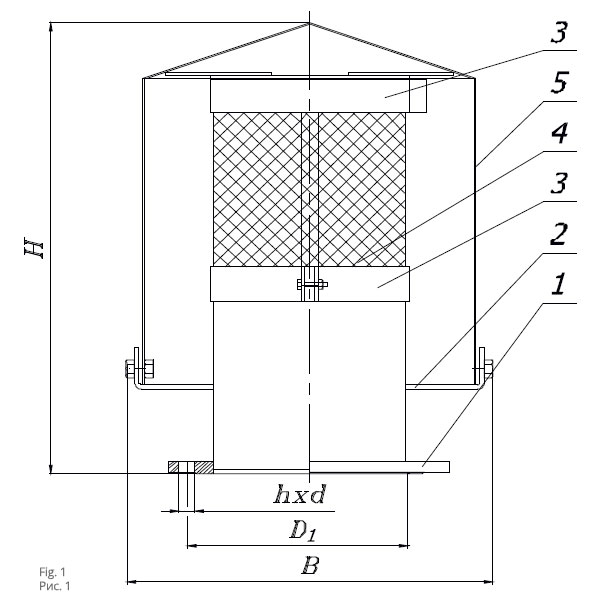

Чертеж патрубка ПВ-50, 150, 200, 250, 350, 500

1-flange, 2-stop, 3-clamp, 4-filter, 5-body.

PURPOSE

Vent branch pipe ПВ in accord with TU U 29.1-24607422-027:2007 is intended for interconnection of the environment with gas space of the tank, where oil or mazut (black oil fuel) are stored.

Operating temperature is from minus 40 to plus 50°C.

TECHNICAL CHARACTERISTICS
DesignaTion Internal diameter DN, mm Carrying capacity m3/hour Overall dimensions max, mm Connection, mm dimensions mm Weight, kg, max
В Н Di nxd
ПВ-50 50 50 140 185 110 4×14 3
ПВ-150 150 150 370 450 225 8×18 20
ПВ-200 200 400 420 520 280 8×18 25
ПВ-250 250 800 500 590 335 12×18 35
ПВ-300 300 1200 530 640 395 12×22 43
ПВ-350 350 1700 570 780 445 12×22 50
ПВ-500 500 5000 780 1090 600 20×22 85
