OVERPASS FOLDING PLATFORM МОЭ-3, МОЭ-5

Мостик откидной эстакадный МОЭ-3, МОЭ-5

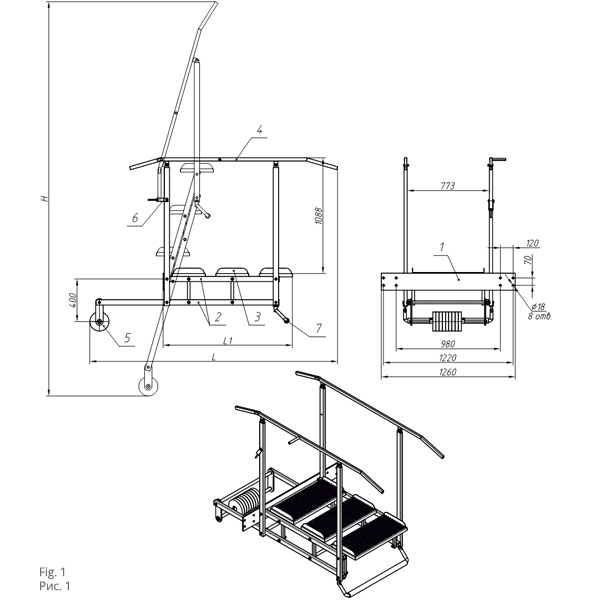

Чертеж мостика откидного эстакадного МОЭ-3, МОЭ-5

1-base; 2-guide rails; 3-step; 4- guardrails; 5-counterweight.

PURPOSE

Overpass folding platform is intended for passage of service personnel from the floor of loading-unloading rack to the rail tank car of any type, and back.

Technical characteristics, overall dimensions (for reference) and mounting distances, as well as general view of the platform, are given in Table 1 and in Fig. 1.

TECHNICAL CHARACTERISTICS
L, мм L1, мм H, мм Number of steps Load on the platform, kg, max. Weight, kg
МОЭ-3 2330 1215 3710 3 120 150
МОЭ-5 3150 2035 4500 5 120 240
