FLAME ARRESTERS ПО-50,80,100,150,200,250,300,500 СА, PN0, 06MPa

Предохранитель огневой ПО чертеж

ПО-(50…500)СА

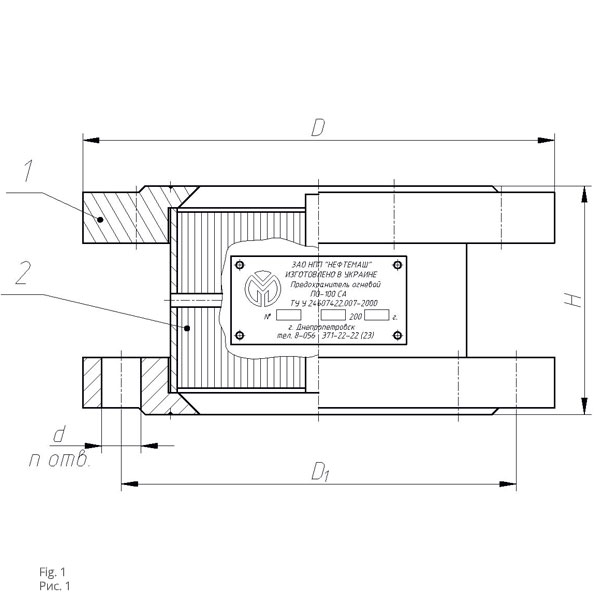

1-housing, 2-flame arrester cassette.

Чертеж предохранителя огневого ПО

ПО-(100…500)СА2

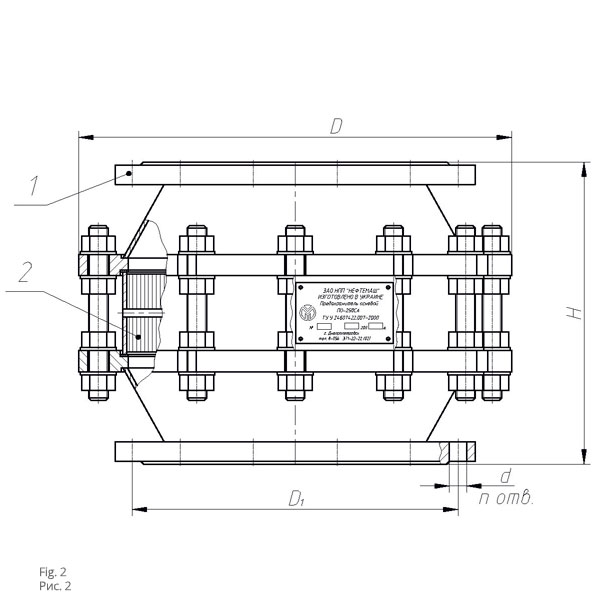

1-housing, 2-flame arrester cassette.

PURPOSE

Frame arresters (hereinafter referred to as “ПО”) in accord with TU U 24607422.0072000 are intended for preventing of occurrence of sparks and flame inside tanks with oil, oil product, or other inflammable liquids.

It is possible to use ПО in tanks with other products for ensuring fire protection.

ПО housings are made of carbon steel or stainless steel. Flame arrester strip is made of aluminium or stainless steel.

TECHNICAL CHARACTERISTICS
Type Designation Nominal internal diameter, mm Carrying capacity, for air, m3/hour Overall dimensions (DxH), mm, max. D1, мм d, мм n of holes Weight, kg, max.
ПО-50СА 50 ДО 25 140×80 110 14 4 3,1
ПО-80 СА 80 до 60 185×135 150 18 4 6,5
ПО-100СА 100 до 100 205×110 170 18 4 7,0
ПО-100СА 100 до 100 215×110 180 18 4 9,5
ПО-100СА2 100 до 100 240×285 170 18 4 16,9
ПО-100СА2 100 до 100 280×285 180 18 8 31,0
ПО-150СА2 150 до 220 290×260 225 18 8 29,0
ПО-200СА 200 до 270 315×130 280 18 8 19,0
ПО-200СА2 200 до 370 340×270 280 18 8 33,0
ПО-250СА2 250 до 600 450×320 335 18 12 69,0
ПО-300СА2 300 до 800 515×320 295 22 12 85,0
ПО-500СА 500 до 900 710×250 650 33 20 154,0
