ANGULAR FLAME ARRESTER ПОУ-50,80

Чертеж предохранителя огневого углового ПОУ рис1
TECHNICAL CHARACTERISTICS
Ду В В1 D D1 d n Н Н1 Weight, kg
ПОУ-50 50 210 130 140 110 14 4 280 163 10
ПОУ-80 80 245 150 185 150 18 4 326 188 16

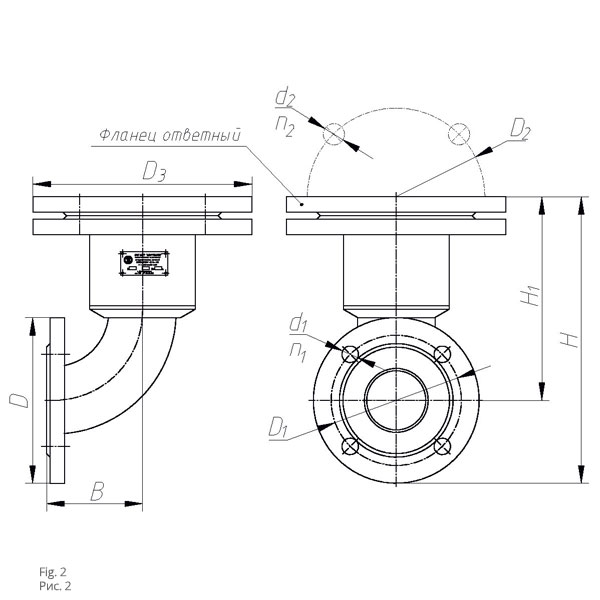

Чертеж предохранителя огневого углового ПОУ рис2
TECHNICAL CHARACTERISTICS
DN D D1 D2 D3 d1 n1 d2 n2 B Н Н1
ПОУ-50 50 140 110 150 185 14 4 18 4 81 245 175
ПОУ-80 80 185 150 170 205 18 4 18 4 126 315 220

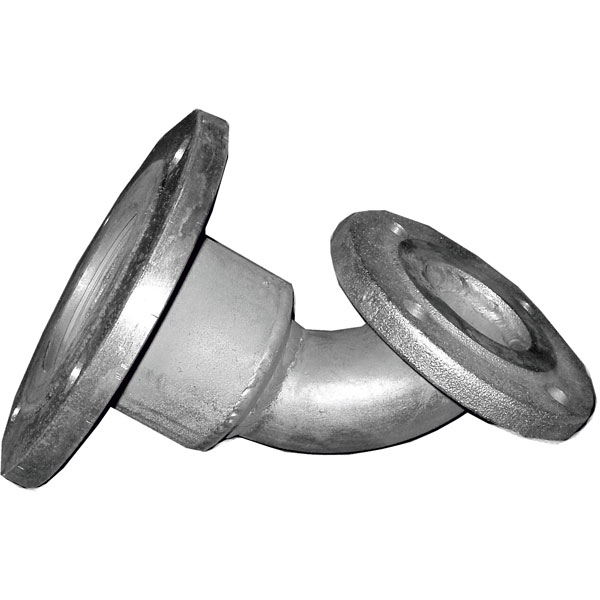

Предохранитель огневой угловой ПОУ-50, 80

PURPOSE

Fuse firing angle (hereinafter ПОУ) TU 24607422.007-2000 designed to temporarily prevent the penetration of flame into the tank with oil and petroleum products pipelines and installed on the product.

Fuse firing angle is set on the suction or discharge piping gas station tanks.

Possible to use of ПОУ in tanks with other products to provide fire protection at the same time, depending on the fluid pressure, fire safety devices can be made: body – made of steel or stainless steel tape – aluminum or stainless steel.
