SCREEN-TYPE LUQUID DRAINAGE FILTER (СДЖ-80, 100, 150, 200)

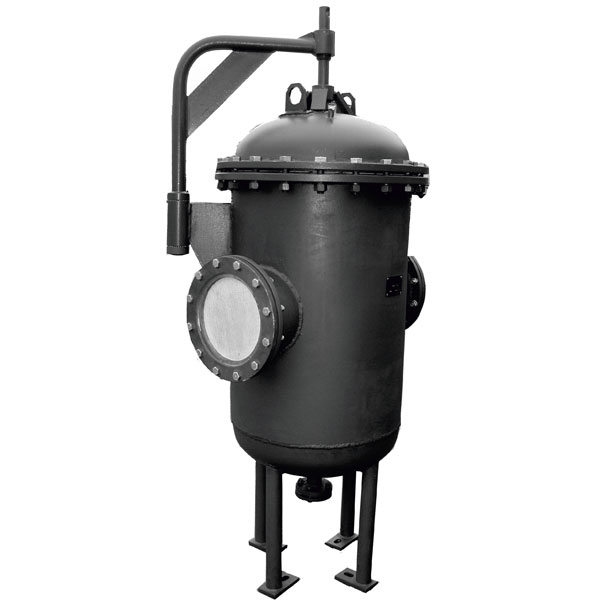

Фильтр сетчатый дренажный жидкостной СДЖ

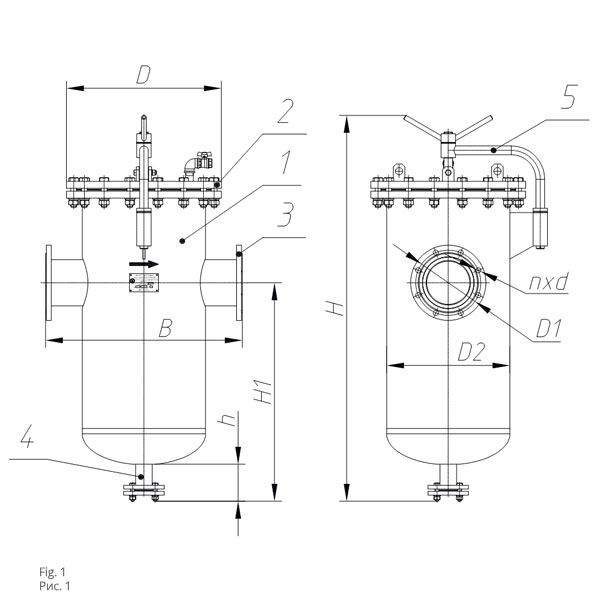

Чертеж фильтра сетчатого дренажного жидкостного СДЖ

1-body, 2-cover, 3-flange mounting, 4-the drain pipe, 5-lifting-rotating device.

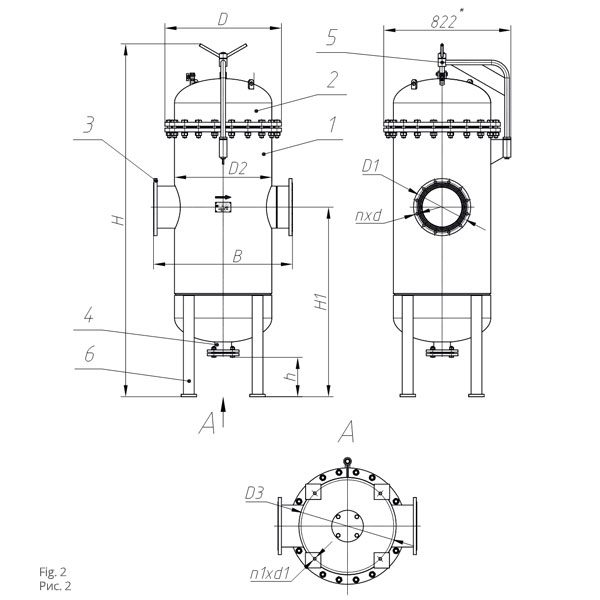

Чертеж фильтра СДЖ

PURPOSE

Screen-type liquid drainage filter (СДЖ) is intended for cleaning oil product with kinematic viscosity of 0,55 to 300mm2/s of mechanical impurities in the range of temperatures from minus 40 to plus 50°C. Degree of filtration is stipulated in the contract by the customer.

In the lower part of the filter housing (Fig. 1) there is a drain tube through which the water, mechanical impurities or mixtures thereof are discharged.

TECHNICAL CHARACTERISTICS
D, мм D1 , мм D2 , мм nxd h, мм H, мм H1 , мм B, мм Рабочее давление, кг/см 2 Масса, кг
СДЖ-80 404 160 273 8х18 195 878 512 684 16 115
СДЖ-100 485 170 377 4×18 130 1115 600 580 6 165
СДЖ-150 535 225 426 8×18 130 1332 754 680 6 220
СДЖ-200 640 280 530 8×18 155 1550 932 780 6 360
