УСН-150, 175, 200; УСН-150Пп, 175Пп, 200Пп

Category
Tank farm facilities, Drain equipment

DEVICES OF LOADING-UNLOADING УСН-150,175,200 OF RAIL TANK CARS

Установка нижнего слива УСН 150
Чертеж установки нижнего слива (налива) УСН 150

УСН:
1-main supporting branch pipe;
2-pivot joints;
3,5-movable branch pipes;
4-damper;
6-connection head;
7-flywheel.

WITH VAPOR HEATING УСН-150Пп,175Пп,200Пп

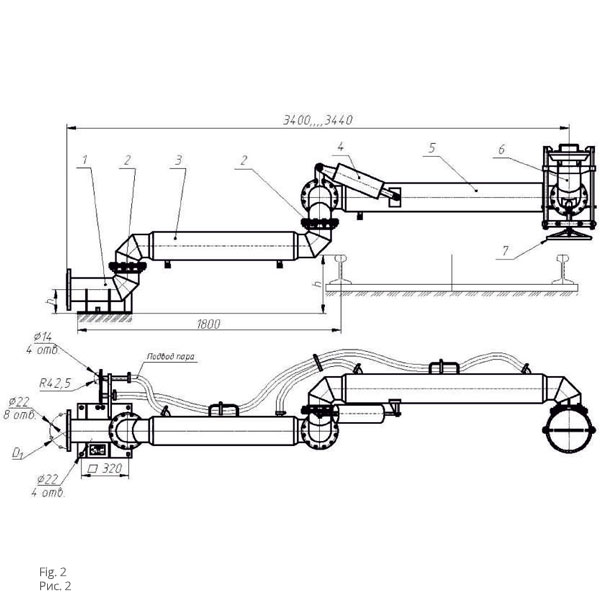

Чертеж установки нижнего слива/налива УСН с пароподогревом

УСН with vapor heating:
1-main supporting branch pipe;
2-pivot joints;
3,5-movable branch pipes with vapor heating jackets;
4-damper;
6-connection head;
7-flywheel.

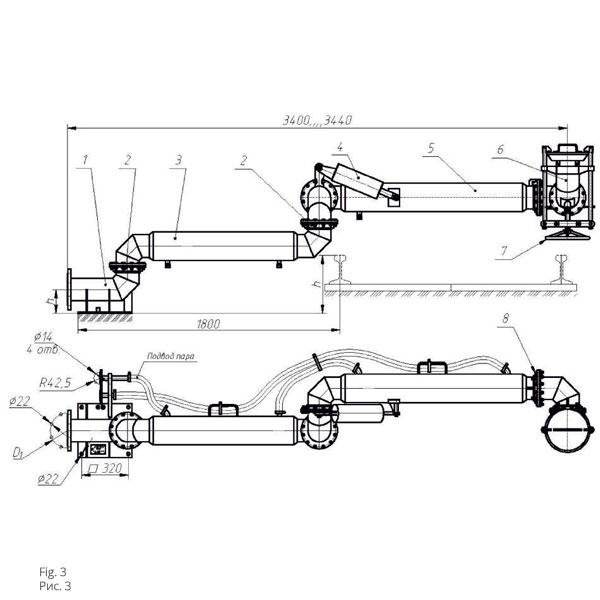

Чертеж установки нижнего слива УСН с пароподогревом

УСН with five pivot joints and vapor heating:
1-main supporting branch pipe;
2-pivot joints;
3,5-movable branch pipes with vapor heating jackets;
4-damper;
6-connection head;
7-flywheel;
8-fifth joint.

PURPOSE

Settings drain-naliva USN-150 (175, 200) and steam heating USN-150Pp (-175Pp, -200Pp) GOST 18194 are designed to drain or light oil through the drain unit of railway tanks. Details of installation of drain-loading in contact with the pipe rail car, are intrinsically safe.

Position count hinges made of two variants with four hinges (Fig. 1,2) and with five joints (Fig. 3).

Plants with five hinges and steam heating (USN-150/5Pp, -175/5Pp, -200/5Pp) can compensate for possible deviations of the axis of the tank drain device from the vertical position, which significantly improves the tightness of the joint installation of USN with a drain tank device.

Allowed:
a) the application for discharge or loading of other liquids, non-corrosive to steel, and oil and petrol resistant rubber;
b) production installation of steel 12X18H10T.

TECHNICAL CHARACTERISTICS
Parameter УСН-150 УСН-175 УСН-200
Nominal diameter (DN), mm 150 175 200
Nominal pressure (PN), MPa(kgf/cm2) 0,4 (4)
The distance from the rail to the foundation (h), mm 400 450 450
The permissible inaccuracy installation tank, mm ±2000*
The slope of the moving pipe 5 towards indigenous joint degrees, no more 10
Distance from the foundation to the axis of the tube indigenous (h), mm 164 164 175
Connecting dimensions, D1, mm 240 270 295
Weight, kg, not more than 150 170 190
Weight unit with steam heating, kg, no more 175 200 245
