INTERNAL CHECK VALVES Х-50, 80, 100, 150, ХП-250, 300, ХП-350, 400, ХП-500с, ХП-600

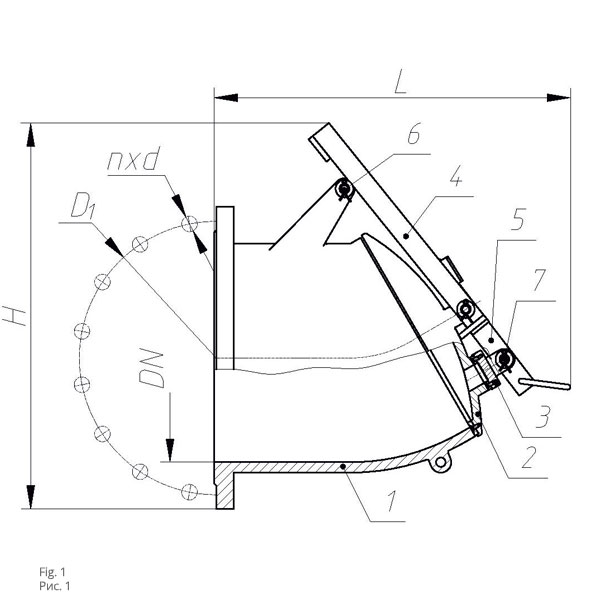

Чертеж хлопушки типа ХП

Internal check valve with bypass

1-body, 2,3-cover, 4,5-arm, 6-fastening cable.

Чертеж хлопушки типа Х

Internal check valve

1-body, 2-cover.

Хлопушки типа Х и ХП
TECHNICAL CHARACTERISTICS
Designation DN,

мм

 L, мм Н, мм Di, мм n x d, мм Weight, kg Маса, кг
Х-50 50 130 140 110 4х14 1,8
Х-80 80 190 230 150 4×18 3,2
Х-100 100 202 235 170 4×18 4
Х-150 150 308 315 225 8×18 9
ХП-250* 250 425 520 335 12×18 22
ХП-300* 300 480 600 395 12×22 97
ХП-350* 350 580 620 470 16×26 45
ХП-400* 400 690 750 525 16×30 123
ХП-500С* 500 700 830 650 20×33 347
ХП-600* 600 960 1030 770 20×36 400

PURPOSE

Internal check valves in accord with TU U 24607422.008-2000 are intended for preventing the leakage of oil products from above-ground tank in case of any fault in the valve gates or in the pipeline.

For opening the cover of internal check valve, the control mechanism with manual drive (МУ1, МУ2, МУВ) or with electric drive (МУЗ) is used.
