САН-80, 100
Category
Equipment filter, Tank farm facilities

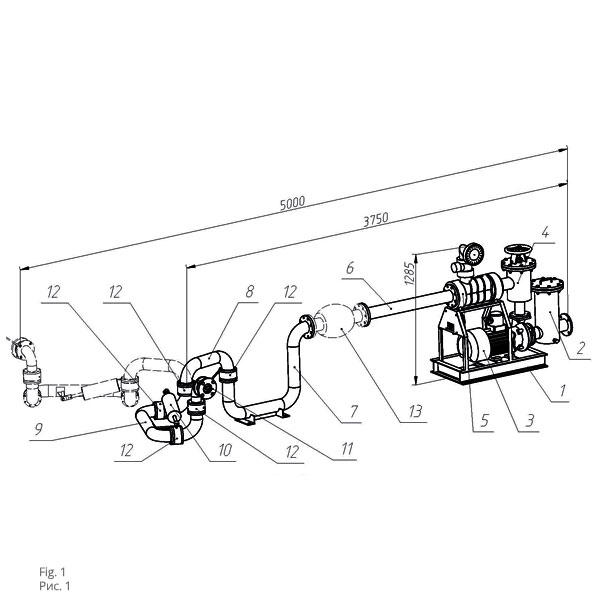

1-frame; 2-screen-type filter; 3-electric pump; 4-shutoff filter; 5-liquid meter; 6-adapter; 7-main bend; 8,9-movable bends; 10-balancing unit; 11-cock; 12-pivot joints; 13-neutralizer.
1-filter; 2-electric pump; 3-shutoff filter; 4-meter; 5-support branch pipe; 6,7-movable branch pipe; 8-pivot joints; 9-cock; 10-outlet coupling.
PURPOSE
Bottom-fill terminal САН-80 (100) is intended for loading light oil products of 0,55.. .60 mm2/sec viscosity from the bottom into road tank cars at loading facilities of oil depots and measuring the amount of delivered oil product in units of volume at ambient temperature from minus 40°C to plus 50°C.
The terminal is made in the form of built-up welded structure located on the frame and allowing to load oil product with error of 0,25%. Pivot joints installed in the terminal line allow loading in zone of radii from 1,5 m to 2,8 m with the angle of coverage of 250 degrees.
It is possible to use the terminal for loading of other liquids not aggressive towards structural steels and oil-gasoline- resistant rubber.
The terminal CAH-80 (100) complies with TU U 29.124607422-003:2005 and it is available in two versions (see Fig. 1,2).
| TECHNICAL CHARACTERISTICS | |
| Basic parameters and dimensions | Standard value |
| Nominal internal diameter, mm | 80(100) |
| Rated capacity, m3/hour | 45(100) |
| Nominal pressure, MPa (kgf/cm2 ), max. | 0,6 (6) |
| Ambient temperature, °C | From -40 to +50 |
| Measure of delivery | In the units of volume |
| Type of metering indicator – local | Double-arrow with reset to zero |
| Angle of rotation about vertical axis of the main pivot joint, degrees, not less | 250 |
