BOTTOM-FILL TERMINAL СНА-80

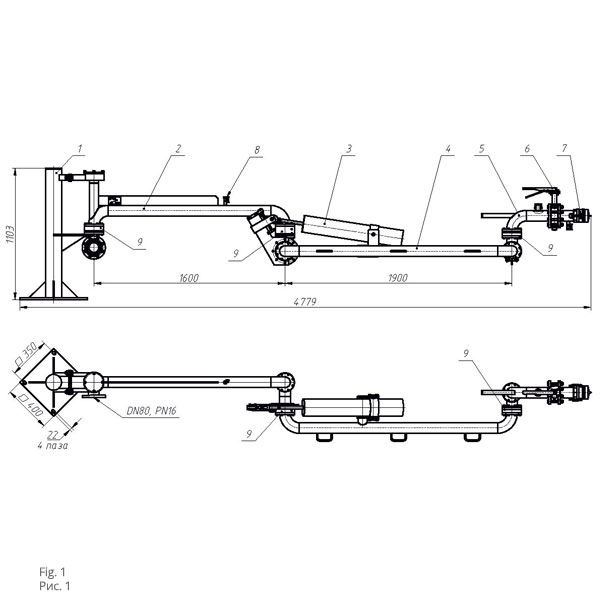

Чертеж СНА-80
Чертеж стояка нижнего автоналива СНА-80

1-post; 2-bearing rod; 3-damper; 4-movable post; 5-connecting bend; 6-flap; 7-quick-release coupling; 8-ball cock; 9-pivot joints.

PURPOSE

Bottom-fill terminal СНА-80 ТУ У 29.124607422-003:2007 is intended for loading of vegetable oil into road tank cars from the bottom.

It is allowed to use the terminal for loading of other liquids not aggressive towards structural steels and oil-gasoline-resistant rubber.

TECHNICAL CHARACTERISTICS
Basic parameters and dimensions Standard value
Nominal internal diameter, mm 80
Nominal pressure, MPa (kgf/cm2 ),  not more than 0,6 (6)
Ambient temperature, °С From -40 to+ 50
Angle of rotation about vertical axis of the main pivot joint, degrees, not less than 300
